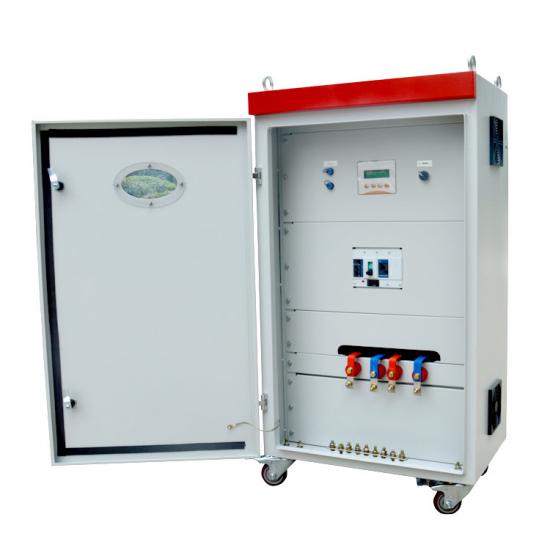

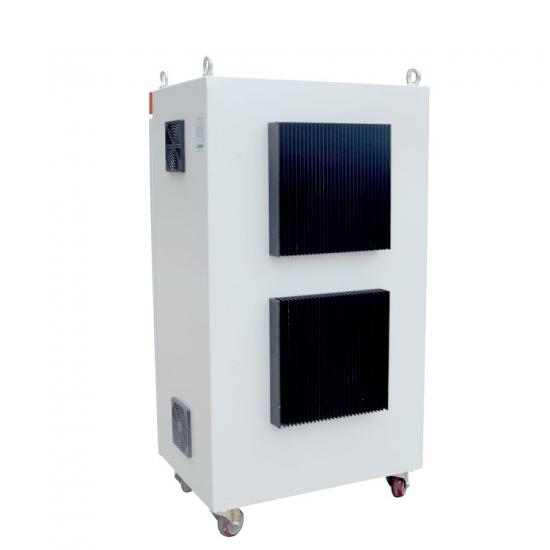

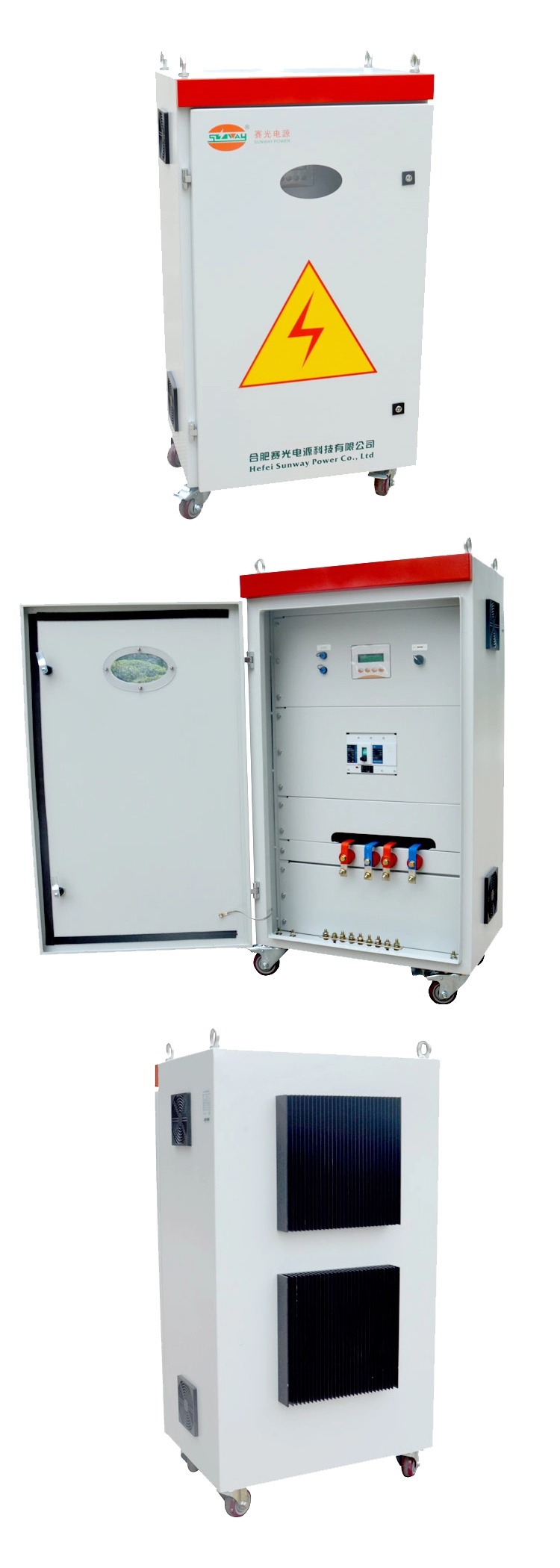

360V 384V 540V 100A Solar charge controller cabinet

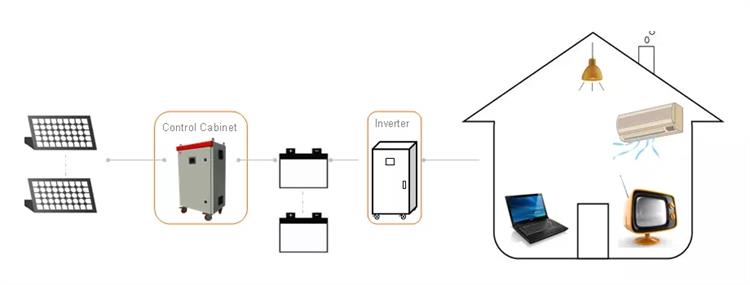

Description of solar charge controller
Features of solar charge controller
-
1.) Accomodate 2 strings input of solar module arrays
2.) IGBT module structure designed
3.) LCD equipped to show parameters of system running status
4.) High efficiency with by PWM charge mode

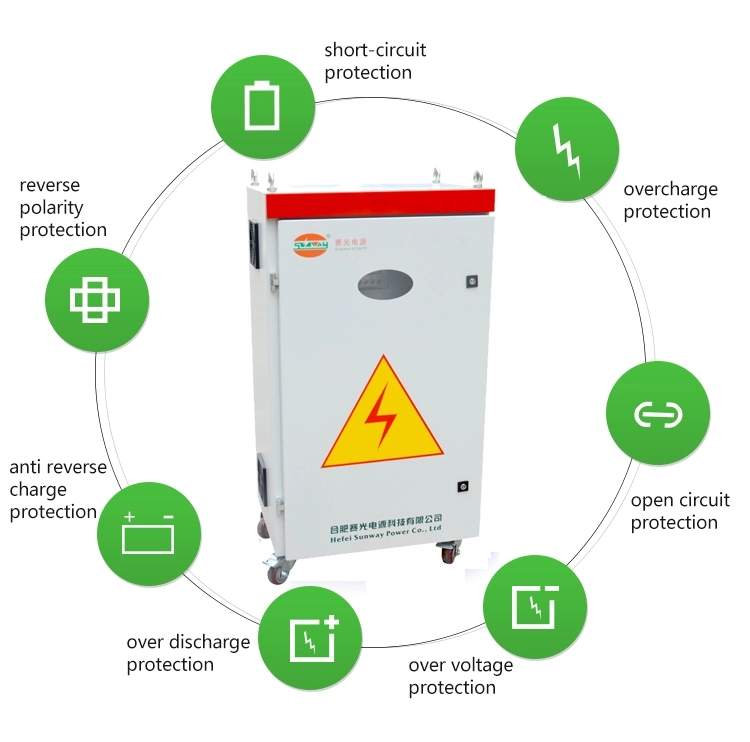

5.) Multi protections as anti-reverse connection, no charging reversely on night. And over-charge, limited charging current &voltage protections for battery
6.) With system abnormal status alarm function
7.) Users can to modify the system parameters by setting keys
8.) Equipped with RS485 data communication function (optional)
9.) TTL Control Signal is offered, suitable for solar-genset hybrid system(optional)
10.) Be able to offer DC power supply (optional)
11.) Day and night double processing mode
Technical Data of solar charge controller
|
|
|||||
|
Model |
SSCP-240V |
SSCP-360V |
SSCP-384V |
SSCP-484V |
SSCP-540V |
|
PV modules Vmp [V] |
300-360 |
450-540 |
480-576 |
605-726 |
675-810 |
|
Module arrays input [array] |
2 (standard) 3/4(optional) |
||||
|
Rated charging current [A] |
o85 o100 o125 o150 o175 o200 |
||||
|
Rated battery bank voltage [V] |
o240 o360 o384 o484 o540 |
||||
|
Performance |
|||||
|
Consumption at standby [mA] |
<40 |
||||
|
Consumption at night [mA] |
<20 |
||||
|
Topology |
Transformerless |
||||
|
Operating Temperature Range |
-25℃ to +60℃ (45℃ to 60℃ with de-rating) |
||||
|
Cooling Method |
Convection with double cooling fans |
||||
|
Ambient Humidity |
0%~98% Non-condensing |
||||
|
Altitude [m] |
Up to 2000 (without power de-rating) |
||||
|
General Data |
|||||
|
Terminal |
Universal KE series |
||||
|
LCD Display |
LCD (16X2characters,green backlight) |
||||
|
Display Language |
English |
||||
|
Data communication |
RS485 |
||||
|
Ingress Protection Class |
IP20 (indoor) |
||||
|
Noise [dBA] |
<30 |
||||
|
Dimensions (W*D*H) [mm] |
620 *480 *1200 |
||||
|
Net weight [kg] |
70 |
||||
|
Standard Warranty [year] |
3 (standard) / 5(optional) |
||||
