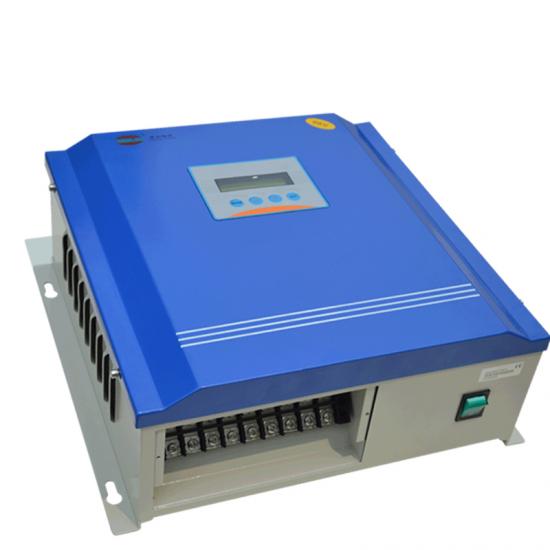

3KW 5KW wind turbine generator on grid controller

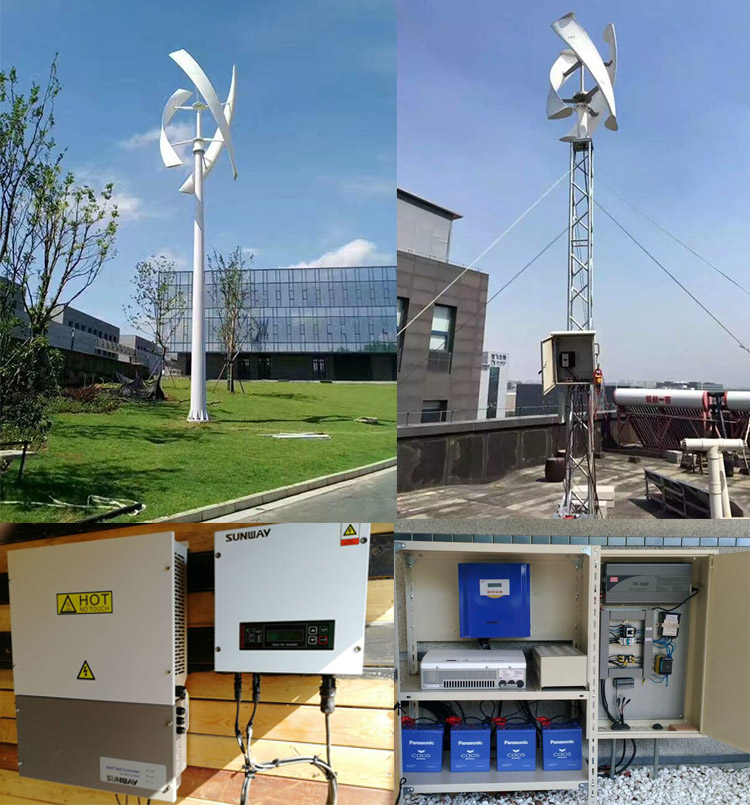

Description of wind on grid controller
Feature of wind charge controller
l Control
using common positive polarity way, double lines for solar array
l Digital
design, module structure, high stability and reliability
l Wind-turbine
brake setting with user-key be programmable
l LCD
equipped (backlighting) to show parameters of system running status

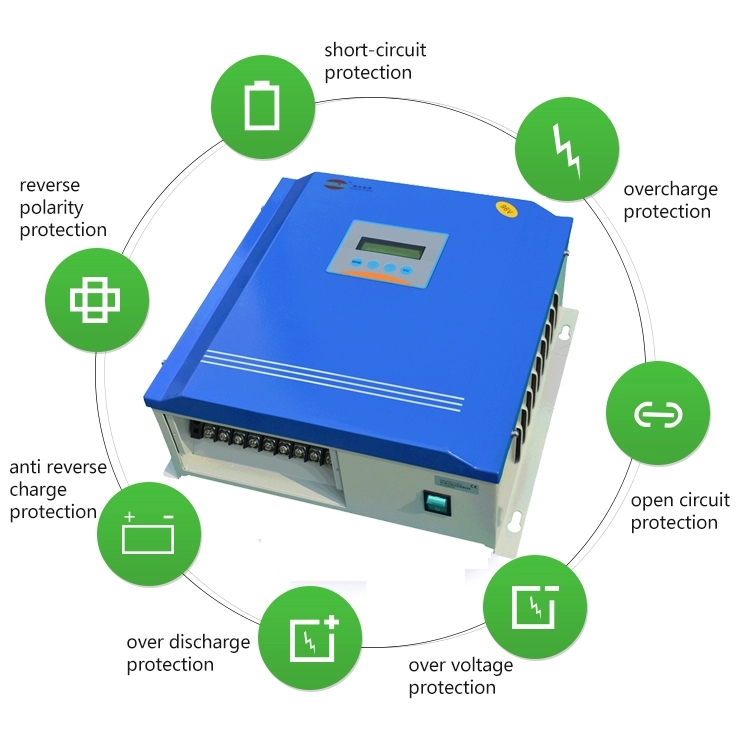

l Multi-protections such as anti-reverse connection, no charging reversely while night. And Over-charge, limited charging current &voltage protections for battery
l User
can adjust setting of battery management system(BMS) and charging controlling
l With
alarm function in system abnormal status
l Equipped
with data communication function (optional)
l Intelligent
cooling system inset

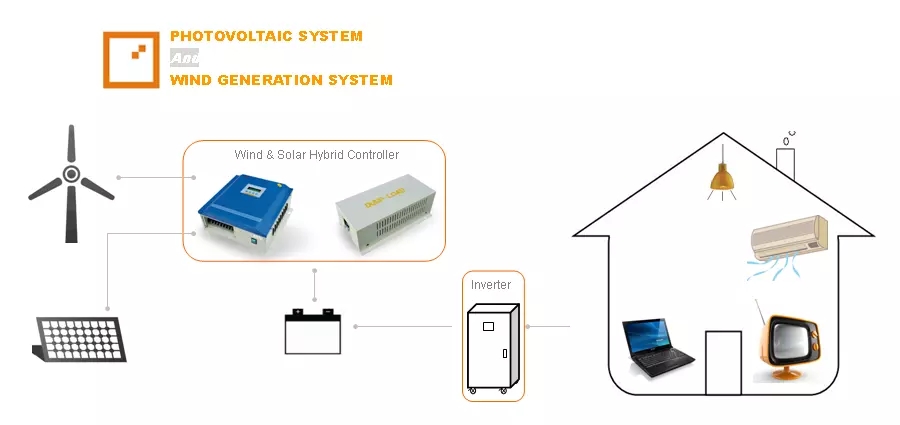

Topology of wind charge controller
Technical Data of wind charge controller
|
System Capability |
||||
|
Model |
1KW/24V,48V |
2KW/48V,96V |
3KW/48V,96V |
5KW/96V,120V,240V |
|
Wind-turbine power[KW] |
1 |
2 |
3 |
5 |
|
Rated wind-turbine voltage[V] |
28.8 57.6 115.2 144 288 |
|||
|
PV Module power[W] |
300 |
600 |
1000 |
1500 |
|
Rated battery voltage[V] |
24 48 96 120 240 |
|||
|
Electrical parameters |
||||
|
Consumption at standby [mA] |
≤60 |
|||
|
Consumption at night [mA] |
≤20 |
|||
|
OperatingTemperatureRange |
-25℃ ～ +60℃ |
|||
|
Cooling Method |
Convection with double cooling fans |
|||
|
Operating temperature |
0%～98% Non-condensing |
|||
|
Altitude [m] |
≤2000 |
|||
|
Terminal |
Barrier terminal |
|||
|
LCD Display |
LCD (16X2characters, green backlight) |
|||
|
Display Language |
English |
|||
|
Data-transfer port |
RS232 |
|||
|
Noise[dBA] |
＜30 |
|||
|
Machinery information |
||||
|
Ingress Protection Class |
IP20 (indoor) |
|||
|
Mounting |
Wall mounting type |
|||
|
Main dimension(W*D*H)[mm] |
380*355*150 |
|||
|
Main-device net weight [kg] |
8.5 |
|||
|
Dump dimension(W*D*H)[mm] |
440*165*150 |
440*240*150 |
440*240*150 |
550*420*170 |
|
Dump-load net weight [kg] |
4 |
7 |
7 |
14 |
