DEPENDABLE POWER, WHERE YOU NEED IT

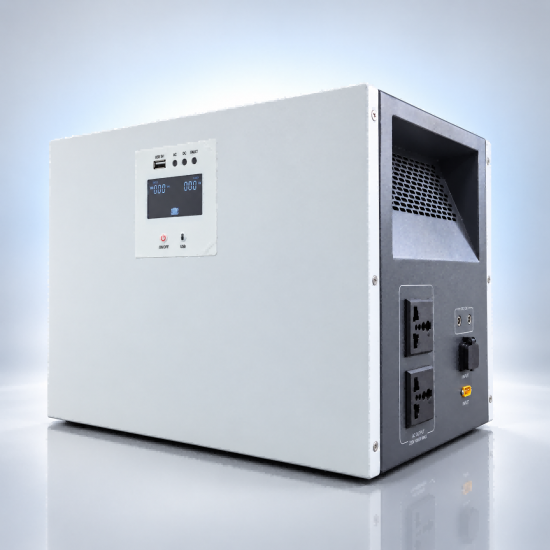

1000W / 2000Wh LiFePO₄ Portable Power Station
A compact all-in-one energy storage system combining a 1000W inverter, a 2000Wh lithium iron phosphate battery, AC charging, solar charging and multiple output ports in one durable metal enclosure. Designed for home backup, office continuity, communications equipment, monitoring systems and temporary off-grid power.
|
Key Value |
What It Means |
|
1000W |
Rated AC output |
|
2000Wh |
Nominal battery energy |
|
550W Max |
Solar input power |
|
≤20ms |
EPS switching time |
Why Choose This All-in-One Power Station?
· Large 2000Wh LiFePO4 battery capacity for extended backup and mobile power applications.
· Stable 1000W, 230Vac inverter output for compatible single-phase AC loads.
· Flexible AC and solar charging options for grid-connected or off-grid operation.
· Two AC outlets share the available 1000W output, supporting multiple compatible devices.
· LCD status display shows output voltage, output power, input voltage, input power and remaining battery percentage.
· Integrated protection against abnormal input, battery voltage, output voltage, overload, short circuit and over-temperature conditions.
Flexible Charging for Grid and Solar Use
Charge from a wide-range AC source when utility power is available, or connect a suitable solar array for renewable charging in off-grid and backup applications. The two input methods give system integrators more flexibility when designing power continuity for different sites.
|
Charging Method |
Input Window |
Key Limit |
|
AC Charging |
90-280Vac input range |
230Vac nominal; 45-65Hz; up to 1000W input power |
|
Solar Charging |
12-60Vdc PV input range |
XT60 female connector; 15A Max; 550W Max |
|
IMPORTANT AC charging and solar charging are both supported. Simultaneous dual-input charging is not stated in the supplied documents and should not be advertised unless separately confirmed by the manufacturer. |
Multiple Outputs in One System
|
Output Type |
Interface |
Rating / Notes |
|
AC Output |
2 outlets |
230Vac ±5Vac, 50Hz ±0.5%, 1000W total shared output |
|
DC Output |
12V DC |
12V/2A maximum; 5521 interface |
|
USB Output |
1 USB port |
5V/1A for compatible USB devices |
|
LOAD LIMIT The two AC outlets share one 1000W inverter. The combined continuous AC load must remain within the rated output; do not treat each socket as a separate 1000W output. |
Real-Time LCD Monitoring
The front display cycles through important operating information so users can quickly check system status. Available indications include output voltage, output power, input voltage, input power, battery percentage and fault status.
Front-Panel Controls and Indicators
|
Control / Indicator |
Function |
|
Power Key |
Short press: display battery level. Long press for more than 2 seconds: turn AC output on or off. |
|
USB Key |
Short press: display battery level. Long press for more than 2 seconds: turn USB output on or off. USB turns on by default after AC output starts. |
|
AC Indicator |
Green when AC output is operating normally. |
|
USB / DC Indicator |
Green when the corresponding low-voltage output function is enabled. |
|
Fault Indicator |
Red when the system detects a fault. |
Built-In Electrical Protection
The integrated inverter and battery system monitors major electrical fault conditions and stops charging or discharging when protection is triggered.
|
Protection Group |
Included Functions |
|
Input Protection |
AC input undervoltage and AC input overvoltage protection |
|
Battery Protection |
Battery undervoltage and battery overvoltage protection |
|
Output Voltage Protection |
AC output undervoltage and AC output overvoltage protection |
|
Load Protection |
AC output overload and short-circuit protection |
|
Thermal Protection |
Over-temperature protection |
Fast EPS Transfer
With an EPS switching time of 20ms or less, the power station can transfer to battery-backed output quickly when the configured AC source is interrupted. This makes it suitable for many office, network and general backup loads that benefit from short transfer time.
|
APPLICATION NOTE Suitability depends on the connected equipment. Do not market or use this product as a certified online UPS or for life-support, medical or other safety-critical equipment unless the complete system has been separately tested and approved for that purpose. |
Recommended Applications
|
Application |
Typical Use |
|

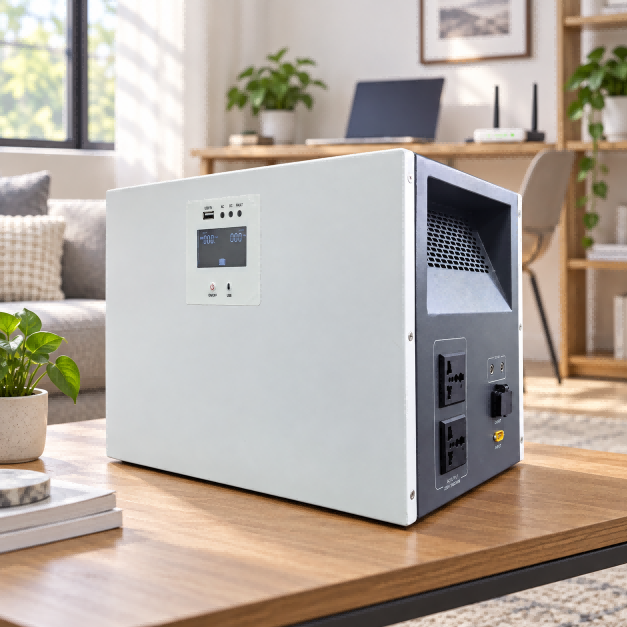

Home Backup |
Lighting, routers, TVs, laptops and other compatible loads during short power interruptions. |
|
Office & Retail |
Computers, network equipment, POS devices and essential low-power office equipment. |
|
Communications & Monitoring |
Routers, cameras, access-control equipment and field monitoring boxes within system limits. |
|
Sheltered Temporary Power |
Worksites, cabins, mobile offices and outdoor activities where the unit remains dry, ventilated and protected from weather. |
|
Solar Energy Storage |
Small off-grid or backup systems using a correctly sized PV array within the specified input window. |
Technical Specifications
|
Parameter |
Specification |
|
Product Type |
All-in-one portable energy storage machine |
|
Rated AC Output Power |
1000W continuous |
|
Battery Chemistry |
Lithium iron phosphate (LiFePO4 / LFP) |
|
Battery Configuration |
6.4V, 314Ah, 2S1P |
|
Nominal Battery Energy |
2000Wh (manufacturer-rated) |
|
AC Input Type |
Single-phase, two-wire (L/N) |
|
Nominal AC Input |
230Vac |
|
AC Input Frequency |
45-65Hz |
|
AC Input Voltage Range |
90-280Vac |
|
Maximum AC Input Power |
1000W Max |
|
PV Input Connector |
XT60 female |
|
PV Input Voltage Range |
12-60Vdc |
|
Maximum PV Input Current |
15A Max |
|
Maximum PV Input Power |
550W Max |
|
AC Output Type |
Single-phase, two-wire (L/N) |
|
Rated AC Output Voltage |
230Vac ±5Vac |
|
Rated AC Output Frequency |
50Hz ±0.5% |
|
Output Power Factor |
≥0.99 |
|
EPS Switching Time |
≤20ms |
|
AC Outlets |
2 outlets; shared 1000W total output |
|
DC Output |
12V/2A Max, 5521 interface |
|
USB Output |
5V/1A |
|
Product Dimensions |
350 × 250 × 290mm (W × D × H, based on supplied drawing) |
|
Storage Temperature |
-10°C to 40°C |
|
Warranty |
3 years from shipment, subject to warranty terms and proper use |
Items to Confirm Before Publishing
|
Item |
Current Status |
|
Net / Gross Weight |
Not provided |
|
Packing Size |
Not provided |
|
Cycle Life |
Not provided |
|
Operating / Charging Temperature |
Not provided as a complete range |
|
Ingress Protection Rating |
Not provided; do not claim waterproof performance |
|
Certifications |
Not provided |
|
Included Accessories |
Not provided |
|
AC Plug / Socket Options |
Confirm market-specific configuration |
|
Simultaneous AC + PV Charging |
Not stated |
Runtime Planning Guide
Actual runtime depends on load type, startup surge, battery state of charge, temperature and inverter efficiency. The examples below use a conservative planning assumption of 80% usable AC energy from the rated 2000Wh battery and are not guaranteed performance values.
|
Continuous Load |
Estimated Runtime* |
Planning Example |
|
50W |
About 32 hours |
Small routers, lighting or monitoring loads |
|
100W |
About 16 hours |
Laptop and network equipment combinations |
|
300W |
About 5.3 hours |
Multiple office or household devices |
|
500W |
About 3.2 hours |
Moderate continuous load |
|
1000W |
About 1.6 hours |
Full rated continuous AC load |
*Planning formula: Runtime ≈ 2000Wh × 0.80 ÷ connected load (W). Confirm real performance through product testing before publishing any guaranteed runtime claim.
Basic Operating Guide
1. Place the unit on a stable, dry surface with the ventilation opening unobstructed.
2. Charge using a compatible 90-280Vac source, or connect a PV source within 12-60Vdc, 15A Max and 550W Max.
3. Briefly press the power key to check battery level. Press and hold for more than 2 seconds to enable AC output.
4. Connect compatible AC loads while keeping the combined continuous load within 1000W.
5. For USB output, press and hold the USB key for more than 2 seconds if the output is not already enabled.
6. Monitor input, output, battery percentage and fault status on the LCD display.
Storage and Safety
· Keep the unit dry and protected from rain, direct sunlight, corrosive gas and fire sources.
· Do not invert, roll, drop, strike or immerse the unit in water.
· Do not short-circuit the AC output or exceed the specified DC output current.
· Do not disassemble the product unless you are an authorized professional.
· Store between -10°C and 40°C in a dry, ventilated environment.
· If unused for 3-6 months, check the battery level and recharge when it falls below 30%.
· Keep the product out of reach of children.
Frequently Asked Questions
1. What is the rated output power?
The continuous rated AC output is 1000W. Both AC outlets share this total output capacity.
2. What type of battery is used?
The system uses a lithium iron phosphate battery configured as 6.4V 314Ah, 2S1P, with a manufacturer-rated energy of 2000Wh.
3. Can it be charged by solar panels?
Yes. The PV input range is 12-60Vdc, with a maximum input current of 15A and maximum input power of 550W. The connector is XT60 female.
4. Can it be charged from mains power?
Yes. It accepts 90-280Vac input, with 230Vac nominal input and 45-65Hz frequency range.
5. Can AC and solar charge at the same time?
The supplied documents confirm both charging methods but do not confirm simultaneous use. Verify this feature before advertising it.
6. Does it work as a backup power supply?
The specification lists an EPS switching time of 20ms or less. Compatibility must still be confirmed for the connected equipment, especially sensitive or safety-critical loads.
7. Can it be used outdoors?
Use only in dry, sheltered and well-ventilated locations. No waterproof or IP rating is stated, and the unit must be protected from rain and immersion.
8. What information appears on the display?
The LCD cycles through output voltage, output power, input voltage, input power, battery percentage and other system status information.
9. What is the warranty period?
The specification states a 3-year warranty from shipment for proven manufacturing defects, subject to correct use and the supplier warranty terms.
10. Are plug types, certifications and accessories included?
These details are not confirmed in the supplied documents. Confirm them for each target market and order before publishing.
Inquiry Call to Action
|
READY TO CONFIGURE YOUR SYSTEM? Tell us your load power, daily operating hours, local voltage, backup duration and available solar conditions. We can help confirm the correct battery capacity, PV array and system configuration for your project. |
