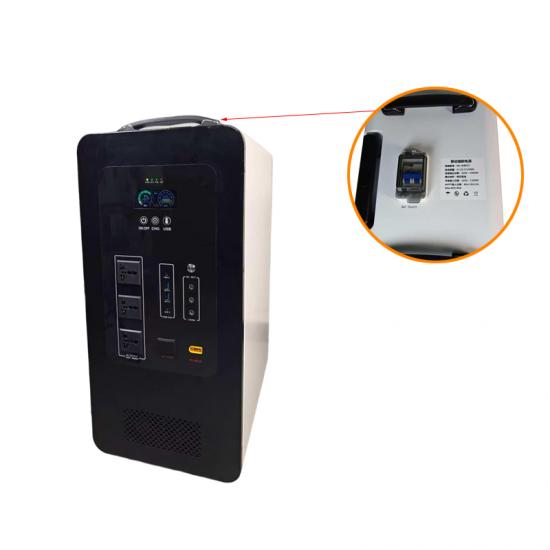

NEW SUNWAY Portable UPS Power Station (Model: QH-033)
Key Functional Components
-
- Color Panel Display: Real-time monitoring of battery level, load capacity, and device temperature for precise power management in emergencies/camping.
- AC Switch: 3 modes (ON/OFF/CHG) for easy 220V AC output control—suitable for home backup and outdoor use.
- USB/DC Switch: Independent control of USB/TYPE-C and 12V DC ports to minimize power waste during off-grid operations.
- AC 220V Output Port: Delivers stable 3KW/5KW power for AC devices (laptops, mini fridges, camping lights) as a versatile portable outlet.
- 3x DC5521 12V Ports (12V/5A): Powers car chargers, RV peripherals—ideal for RV off-grid power needs.
- 4x USB/TYPE-C Ports (5V/18W total): Fast-charges smartphones/tablets—essential for camping/emergencies.
- XT90-PV Input: Compatible with 18V-80V solar panels (up to 2500W/3000W) for eco-friendly off-grid solar charging.
- AC 220V-240V Charge Input (1000W/5A): Enables quick recharging, perfect for prepping home backup before storms.
- Pure Sine Wave Inverter: 3000W rated (3500W max) or 5000W rated (5500W max)—stable power for sensitive electronics (home/RV use).
- LiFePO₄ Battery Pack: 2 options (25.6V 120Ah/3072Wh or 25.6V 200Ah/5120Wh)—high energy density for extended runtime.
- Silent High-Speed Fan: Efficient heat dissipation with low noise—non-intrusive for home/outdoor scenarios.
- Built-in MPPT Solar Controller: Optimizes solar energy capture (18V-80V input, 600W/1000W rated)—boosts solar generator performance.
Detailed Technical Specifications
|
Parameter Category |
3KW + 3KWh Configuration |
5KW + 5KWh Configuration (Reference) |
|
Built-in Lithium Battery Pack |
Lithium Iron Phosphate: 25.6V 120Ah 3072Wh |
Lithium Iron Phosphate: 51.2V 100Ah 5120Wh |
|
Inverter Performance |
Rated 3000W, Max Instantaneous Peak: 3500W, Pure Sine Wave |
Rated 5000W, Max Instantaneous Peak: 5500W, Pure Sine Wave |
|
AC Charging |
Input: AC 220V-240V 50/60Hz, 750W; Charging Time: 4-5h |
Input: AC 220V-240V 50/60Hz, 1000W; Charging Time: 5-6h |
|
Solar Charging (MPPT) |
Input Voltage: 18V-80V, 600W; Supports up to 2500W solar panels |
Input Voltage: 18V-80V, 1000W; Supports up to 3000W solar panels |
|
DC Output |
3 x 12V/5A (DC5521) + 4 x 5V/18W (2 USB + 2 TYPE-C) |
3 x 12V/5A (DC5521) + 4 x 5V/18W (2 USB + 2 TYPE-C) |
|
Protection Features |
Overheat (≥85℃), AC Overload (≥3500W), Short Circuit, Overcharge/Over-Discharge |
Overheat (≥85℃), AC Overload (≥5500W), Short Circuit, Overcharge/Over-Discharge |
|
Operating Conditions |
Discharge: -10℃ to 55℃; Charging: 0℃ to 45℃ |
Discharge: -10℃ to 55℃; Charging: 0℃ to 45℃ |
|
Dimensions & Weight |
610×350×280mm, 37.5kg |
650×380×300mm, 52kg |
Important Notes
1. Safety for All Scenarios: Avoid exposing the unit to rain, water, or extreme temperatures (humid/flammable environments)
– critical for both Home Backup Power and Camping Portable Power Station use.
2. Solar Charging Compatibility: As a Solar Generator, use only 18V-80V solar panels
(max 2500W for 3KW model, 3000W for 5KW model) to prevent component damage.
3. Home Backup Prep: For Emergency Power Supply readiness, keep the battery charged
to 50%-70% when not in use, and store in a 15℃-25℃, dry area.
4. Load Management: Do not exceed the rated AC output (3000W/5000W)
– overloading will trigger protection, which may disrupt power during critical RV Portable Power or home backup use.
