5KW-15KW Home storage solar Hybrid power system 220VAC/380VAC

5kw 10kw Solar Hybrid Storage Power System for Home Use with Three Phase or Single Phase Voltage

item no.:
5-15KW
lead time:
15 days
product orgin:
china
shipping port:
Any port in China
payment:
T/T

inquiry now download

products details

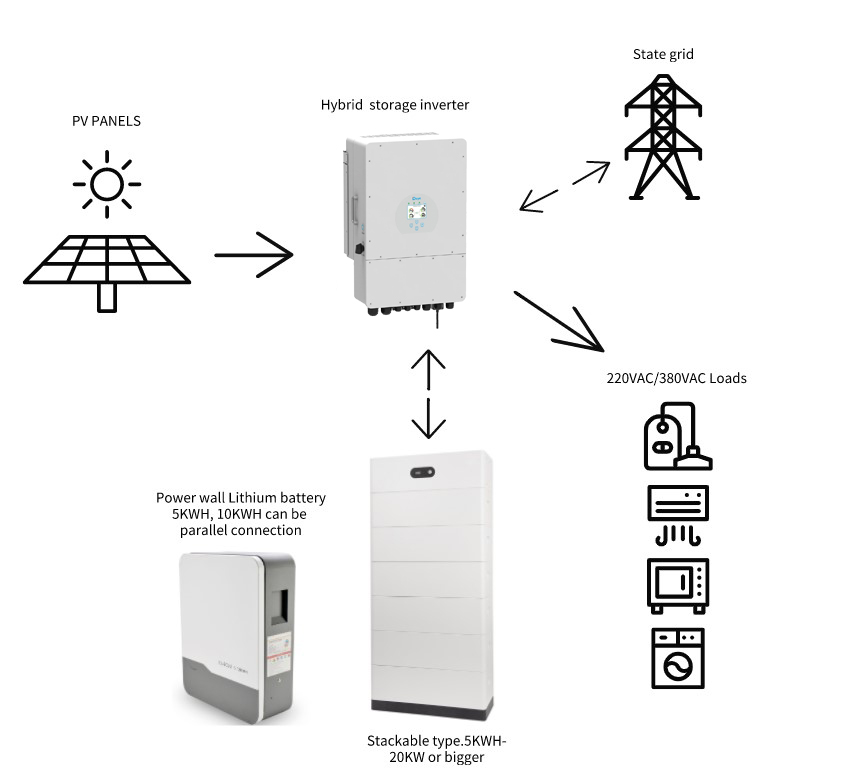

Example of 5KW Solar hybrid storage power system design
Item	Module	Description	Quantity
1	SW450W-144M	MONO HALF CUT CELL,450W	10pcs
2	ON OFF Grid hybrid Inverter 5kw	DEYE/AFORE 5KW	1pcs
3	Batteries	51.2V 200AH lithium iron battery	1 pc
4	Mounting Structure	Customized for 15pcs panels	1set
5	PV Cables	4mm2	100m

Note: Product dimensions and physical appearance in this data sheet are nominal.Sunway new energy reserves the right to make the product changes from time to time,without prior notification, which may change the dimensions and/or physical appearance shown.

Details list please contact with us to get more.
