600W micro inverter solar

Using IP65 waterproof streamline design, Can effectively prevent rainwater on the surface erosion, Built-in high-performance Maximum Power Point Tracking(MPPT)Function
  • item no.:

    WVC-600
  • lead time:

    7
  • product orgin:

    China
  • shipping port:

    china
  • payment:

    T/T;LC
  • color:

    While sliver
products details

600W micro inverter solar

2_01

600W micro inverter solar features

WVC-600 (Wireless) Using IP65 waterproof streamline design, Can effectively prevent rainwater on the surface erosion, Built-in high-performance Maximum Power Point TrackingMPPTFunctionBetter able to track changes in the solar luminosity and control different output power, Effectively capture and collect sunlight. AC electric power transmission using the reverse transmission technology, Is one of our patented technology, The inverter output power can provide load priority use, Extra electricity to the grid, Efficient use of the inverter to the power emitted, Electricity transmission rate of up to 99%.


Features

l  High performance maximum power point tracking (MPPT)

l  Reverse power transmission

l  Intelligent monitoring management

l  Input /output is fully isolated to protect the electrical safety

l  Multiple parallel stacking

l  Digital control system

l  Simplify maintenance (user serviceable)

l  Operation and maintenance costs low

l  Flexible installation

l  Use the wireless 433MHz communication mode


Parameters of 600W micro inverter solar

WVC-600 (Wireless)

Parameters

WVC-600 (Wireless)-120VAC/230VAC

Maximum input power

600Watt

Recommended using solar panels

Power2×300W,open circuit voltage 36-50VOC

Solar panel open circuit voltage range

36-50VOC

Peak power tracking voltage

22-50V

Min / Max start voltage

22-50V

Maximum DC short current

35A

Maximum Input Current

24A

Automatic shift AC voltage and output

Automatic shift local grid voltage

Output Data

@120VAC

@230VAC

Peak power output

630Watt

630Watt

Rated output power

6000Watt

600Watt

Rated output current

5A

2.6A

Rated voltage range

80-160VAC

180-260VAC

Rated frequency range

48-51Hz/58-61Hz

48-51Hz/58-61Hz

Power factor

>99%

>99%

Maximum units per branch circuit

5PCSSingle-phase

10PCSSingle-phase

Output Efficiency

@120VAC

@230VAC

Static MPPT efficiency

99.5%

99.5%

Maximum output efficiency

95%

95%

Night time power consumption

<1W

<1W

THD

<5%

<5%

Exterior

Operating temperature range

-40 to +60

Dimensions (WxHxD)

283mm×200mm×41.6mm

N.W.

1.63kg

Waterproof level

IP65

Cooling

Self-cooling

Communication Mode

Wireless 433MHz

Power transmission mode

Reverse transfer, load priority

Monitoring System

Lifetime free

Electromagnetic compatibility

EN50081.part1  EN50082.part1

Grid disturbance

EN61000-3-2Safety EN62109

Grid detection

DIN VDE 1026 UL1741

Certificate

CEC,CE National patent technology

Package weight

Sepcification

Single(packing)

Whole(5PCS)

G.W.

2.55Kg

14.10Kg

Dimensions

342×240×100mm

440×380×260mm



* Attn:each MODEM can control 46 PCS micro inverters on the condition of non-intelligent electric box

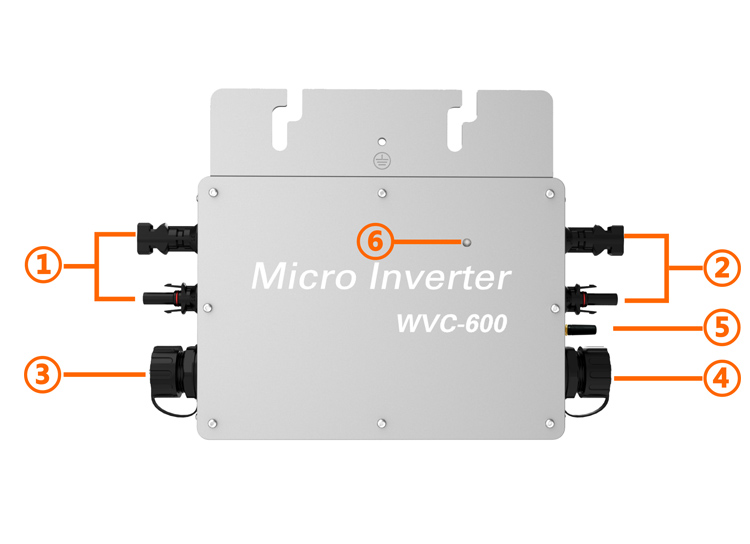

①PV Panel Input 1  ②PV Panel Input 2  ③AC Input – Connect to the Previous


④AC Output – Connect to the Next  ⑤433MHz Wireless Line  ⑥LED Display

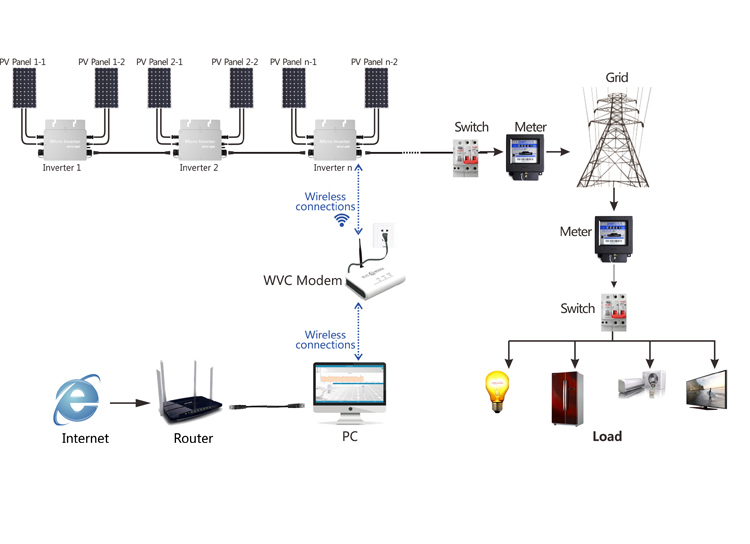

Main project of micro grid tie inverter solar system



Payment of

micro grid tie inverter solar system




Payment Term



T/T
EXW

30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union

Amount lower than 5000usd
West Union
Delivery Time
7~10days after receiving payment for one container
