Long cycle life 2V 800ah Opzv Battery for Solar System

1. storage battery , solar power battery, long life GEL battery, tubular gel battery 2. 2V battery,long life battery, battery pack ,12V Solar battery, battery for 48v system,6V solar battery, 3. Gel Battery, AGM Battery, Batteries lead acid, SLA Battery, Free maintenance battery, Sealed battery, Deep cycle battery, Solar Power battery,VRLA Battery,rechargeable battery, Long life battery, Solar Gel Battery 4. Storage battery, Solar panel Battery, Inverter battery, Solar charger controller battery, UPS Battery, Marine battery, car battery, Electrical battery, Telecom Battery, Solar back-up battery, Terminal battery, Front Access battery, battery pack, Solar batteries, 12v battery 5. OPzV Battery, Gel Battery, 2V tubular battery, Deep cycle battery, Long life Gel Battery, OPzV tubular plates battery
  • item no.:

    2V800AH
  • lead time:

    7
  • product orgin:

    China
  • shipping port:

    china
  • payment:

    T/T;LC
  • color:

    WHITE
products details
Product Description

Key Features :
1. storage battery , solar power battery, long life GEL battery, tubular gel battery
2. 2V battery,long life battery, battery pack ,12V Solar battery, battery for 48v system,6V solar battery,
3. Gel Battery, AGM Battery, Batteries lead acid, SLA Battery, Free maintenance battery, Sealed battery, Deep cycle battery, Solar Power battery,VRLA Battery,rechargeable battery, Long life battery, Solar Gel Battery
4. Storage battery, Solar panel Battery, Inverter battery, Solar charger controller battery, UPS Battery, Marine battery, car battery, Electrical battery, Telecom Battery, Solar back-up battery, Terminal battery, Front Access battery, battery pack, Solar batteries, 12v battery
5. OPzV Battery, Gel Battery, 2V tubular battery, Deep cycle battery, Long life Gel Battery, OPzV tubular plates battery


Applications :
♦Solar and wind energy storage system


♦EPS and UPS battery backup
♦Signal system , emergency lighting system , security system
♦Telecommunication Equipment

♦Power plant and transmission system

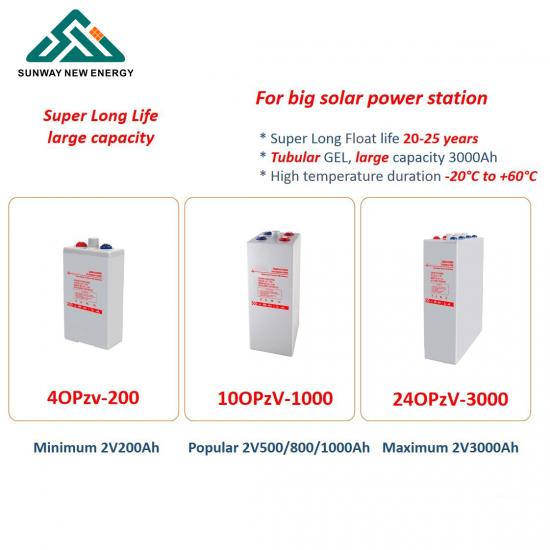

Battery Specification:


Code
Nominal
Voltage
(V)
Capacity (AH) Dimension Weight Terminal
Length Width Height Total Height Kg Lb Type Posi-
tion
mm in mm in mm in mm in
OPzV2-200 2 200 103 4.06 206 8.11 354 13.94 380 14.96 20 44.1 T20 G
OPzV2-250 2 250 124 4.88 206 8.11 354 13.94 380 14.96 24 52.9 T20 G
OPzV2-300 2 300 145 5.71 206 8.11 354 13.94 380 14.96 29 63.9 T20 G
OPzV2-350 2 350 124 4.88 206 8.11 470 18.5 496 19.53 31 68.4 T20 G
OPzV2-420 2 420 145 5.71 206 8.11 470 18.5 496 19.53 36 79.4 T20 G
OPzV2-500 2 500 166 6.54 206 8.11 470 18.5 496 19.53 42 92.6 T20 G
OPzV2-600 2 600 145 5.71 206 8.11 645 25.39 671 26.42 50 110.3 T20 G
OPzV2-630 2 630 225 8.86 206 8.11 470 18.5 496 19.53 53.5 118 T20 G
OPzV2-700 2 700 225 8.86 206 8.11 470 18.5 496 19.53 59.5 131.2 T20 G
OPzV2-770 2 770 225 8.86 206 8.11 470 18.5 496 19.53 65.5 144.4 T20 G
OPzV2-800 2 800 191 7.52 210 8.27 645 25.39 671 26.42 68 149.9 T20 H
OPzV2-1000 2 1000 233 9.17 210 8.27 645 25.39 671 26.42 82 180.8 T20 H
OPzV2-1200 2 1200 275 10.83 210 8.27 645 25.39 671 26.42 97 213.9 T20 H
OPzV2-1500 2 1500 275 10.83 210 8.27 795 31.3 821 32.32 120 264.6 T20 H
OPzV2-2000 2 2000 399 15.71 212 8.35 772 30.39 797 31.38 160 352.8 T20 I
OPzV2-2500 2 2500 487 19.17 212 8.35 772 30.39 797 31.38 200 441 T20 J
OPzV2-3000 2 3000 576 22.68 212 8.35 772 30.39 797 31.38 240 529.2 T20 J

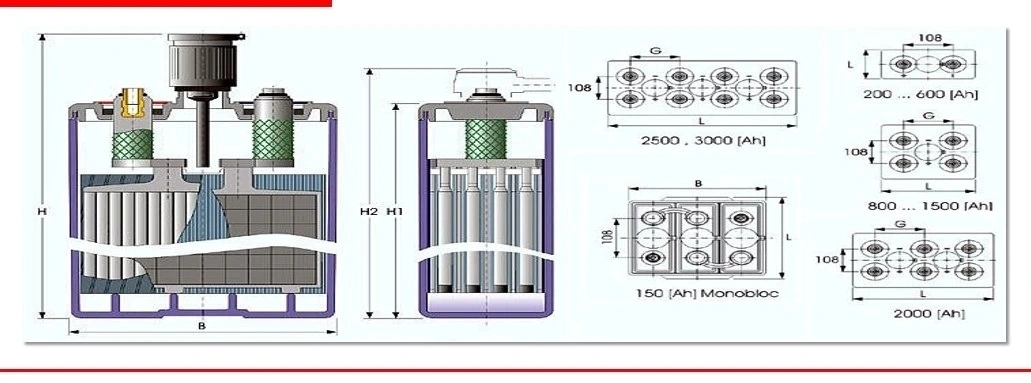

Construction

Element Electrolyte Positive Plate Negative Plate Container
Material Colloidal Silicon Lead dioxide lead ABS

Element Cover Safety valve Terminal/Wire Separator
Material ABS Rubber Copper Fiberglass

FAQ

Ø Q1. Can your battery be delivered by sea and air?

                A: Yes, our batteries can be delivered both by sea and by air. We have MSDS, test report for safe transport as non-dangerous products.
                Ø Q2. Can I put my logo on the battery?
              A: Yes, you can print your logo on our batteries Freely.Welcome to share us your logo design.
                Ø Q3. Can I fast charge my battery?
                A: Fast charging is not recommended as ifs harmful for the battery.
                ØQ4. Can I do a partial replacement of my batteries?
                A: Partial battery replacement of lead acid battery banks is not recommended.
                Ø Q5. How about your delivery time usually?
                A: About 7 days for stock products, around 20 days for half container products, 30 days for 20ft full container products.
                Ø Q6. Are you a battery manufacturer, and do you produce the plate by yourself ?
                A: Yes, we are a professional battery manufacture in Guangdong Province, China. And we produce plates by ourselves.
                Ø Q7. What certificate your company have?
                A: ISO 9001, ISO 14001, OHSAS 18001, CE, UL, IEC 61427 test report, Patent for gel technology and other Chinese honor.
                Ø Q8.What is your warranty time for VRLA battery ?
                A: It depends on battery capacity, depth of discharge, and battery usage. Please kindly contact us for accurate information based on detailed requirements.
                Ø Q9. Why battery has different capacity at different hour rate?
                A: The capacity of a battery, in Ahs, is a dynamic number that is dependent on the discharge current. For example, a battery that is discharged at 10A will give you more capacity than a battery that is discharged at 100A. With the 20-hr rate, the battery is able to deliver more Ahs than with the 2-hr rate because the 20-hr rate uses a lower discharge current than the 2-hr rate.
                Ø Q10. What is the shelf life of VRLA battery and how to maintain the battery?
                A: The limiting factor of battery's shelf life is the rate of self-discharge which itself is temperature dependent. VRLA batteries will self-discharge less than 3% per month at 77° F (25° C). VRLA batteries should not be stored for more than 6 months at 77° F (25° C) without recharged. If in hot temperature, recharge it every 3 month. When batteries are taken out of long storage, it is recommended to recharge before use.
                Ø Q11. How does your factory control the quality?

                A: We Adopt ISO 9001 quality system to control the quality. We have Incoming Quality Control (IQC) department to test and confirm raw material meets high quality producing requirements, Production Quality Control (PQC) department contains The first Inspection, In-process quality control, acceptance inspection and full inspection, Outgoing Quality Control (OQC) department confirm no defective batteries come out from the factory.
