NEW SUNWAY Portable UPS Power Station (Model: QH-033)
Ideal for Off-Grid Use, Emergency Backup & Outdoor Power Needs
Product Overview

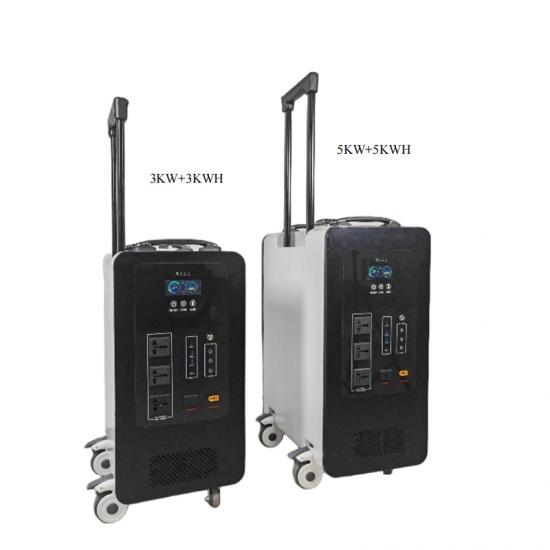

This specification applies specifically to the QH-033 model, available in two configurations:

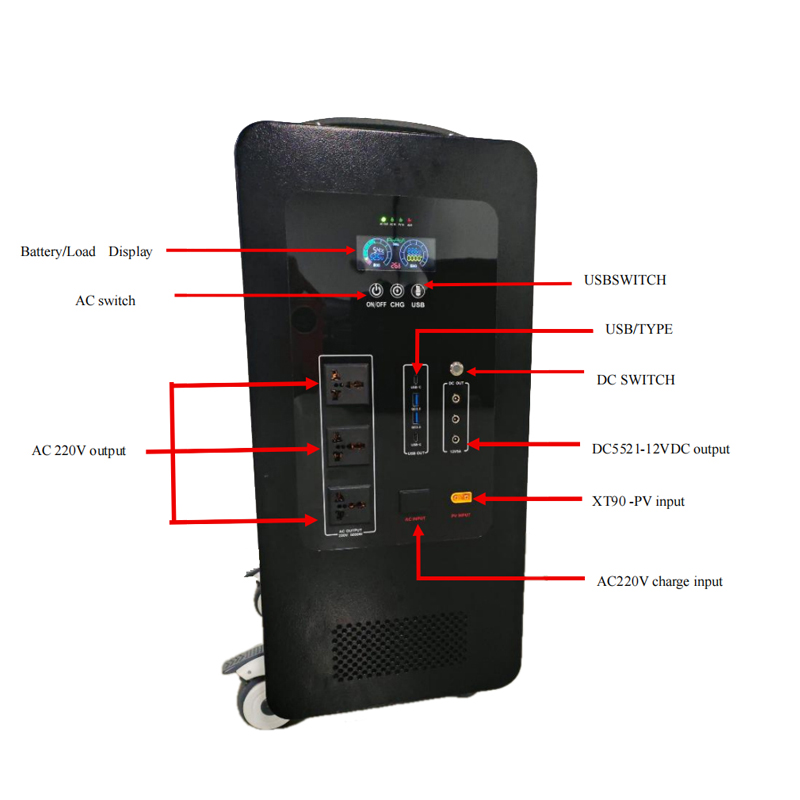

Key Functional Components
- AC220V discharge: continuous 3KW output; AC220V charging: 1000W 5A.
- DC: 3 x 12V 5A interfaces, 2 x USB interfaces, 2 x TYPE-C interfaces.
- Display: Color panel display, accurately showing remaining power, load power,
- and device temperature.
- Heat dissipation: high-speed silent fan for heat dissipation;
- built-in MPPT solar controller; supports 18V-80V 2500W solar panel charging.
Detailed Technical Specifications
|
Parameter Category |
3KW + 3KWh Configuration |
5KW + 5KWh Configuration (Reference) |
|
Built-in Lithium Battery Pack |
Lithium Iron Phosphate: 25.6V 120Ah 3072Wh |
Lithium Iron Phosphate: 25.6V 200Ah 5120Wh |
|
Inverter Performance |
Rated 3000W, Max Instantaneous Peak: 3500W, Pure Sine Wave |
Rated 5000W, Max Instantaneous Peak: 5500W, Pure Sine Wave |
|
AC Charging |
Input: AC 220V-240V 50/60Hz, 750W; Charging Time: 4-5h |
Input: AC 220V-240V 50/60Hz, 1000W; Charging Time: 5-6h |
|
Solar Charging (MPPT) |
Input Voltage: 18V-80V, 600W; Supports up to 2500W solar panels |
Input Voltage: 18V-80V, 1000W; Supports up to 3000W solar panels |
|
DC Output |
3 x 12V/5A (DC5521) + 4 x 5V/18W (2 USB + 2 TYPE-C) |
3 x 12V/5A (DC5521) + 4 x 5V/18W (2 USB + 2 TYPE-C) |
|
Protection Features |
Overheat (≥85℃), AC Overload (≥3500W), Short Circuit, Overcharge/Over-Discharge |
Overheat (≥85℃), AC Overload (≥5500W), Short Circuit, Overcharge/Over-Discharge |
|
Operating Conditions |
Discharge: -10℃ to 55℃; Charging: 0℃ to 45℃ |
Discharge: -10℃ to 55℃; Charging: 0℃ to 45℃ |
|
Dimensions & Weight |
610×350×280mm, 37.5kg |
650×380×300mm, 52kg |
Important Notes
1. Safety for All Scenarios: Avoid exposing the unit to rain, water, or extreme temperatures (humid/flammable environments)
– critical for both Home Backup Power and Camping Portable Power Station use.
2. Solar Charging Compatibility: As a Solar Generator, use only 18V-80V solar panels
(max 2500W for 3KW model, 3000W for 5KW model) to prevent component damage.
3. Home Backup Prep: For Emergency Power Supply readiness, keep the battery charged
to 50%-70% when not in use, and store in a 15℃-25℃, dry area.
4. Load Management: Do not exceed the rated AC output (3000W/5000W)
– overloading will trigger protection, which may disrupt power during critical RV Portable Power or home backup use.
