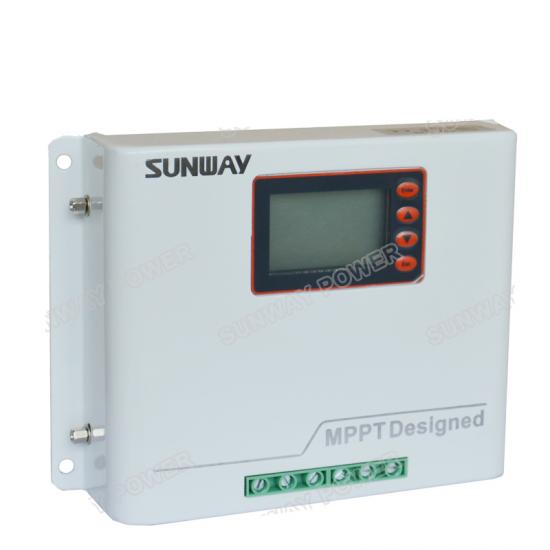

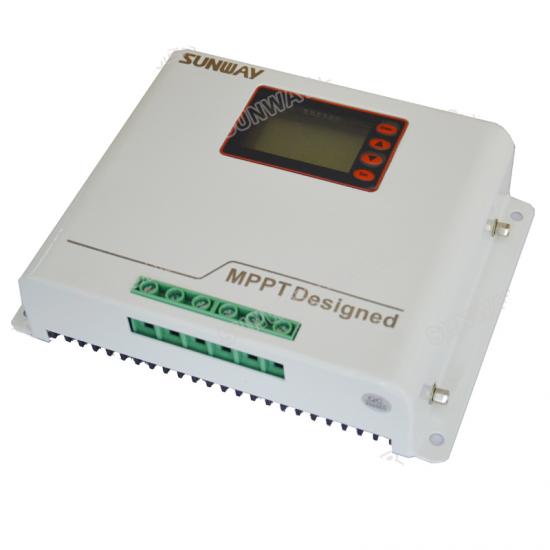

12/24V 5-15A MPPT solar charge controller

This controller is for off-grid PV system to control the charging and discharging of the battery, especially suitable for street light system. The controller features a smart tracking algorithm inside that maximizes the energy from the solar PV module(s) and charge the battery. At the same time, the low voltage disconnect function (LVD) will prevent the battery from over discharging. Charging process has been optimized for long battery life and improved system performance.
  • item no.:

    SSCM-1224-5-15A-S
  • lead time:

    7
  • product orgin:

    CHINA
  • shipping port:

    CHINA
  • payment:

    T/T;LC
  • color:

    WHITE
products details


12/24V auto detection MPPT solar charge controller


2_01


Description of MPPT solar charge controller



Features of MPPT solar charge controller

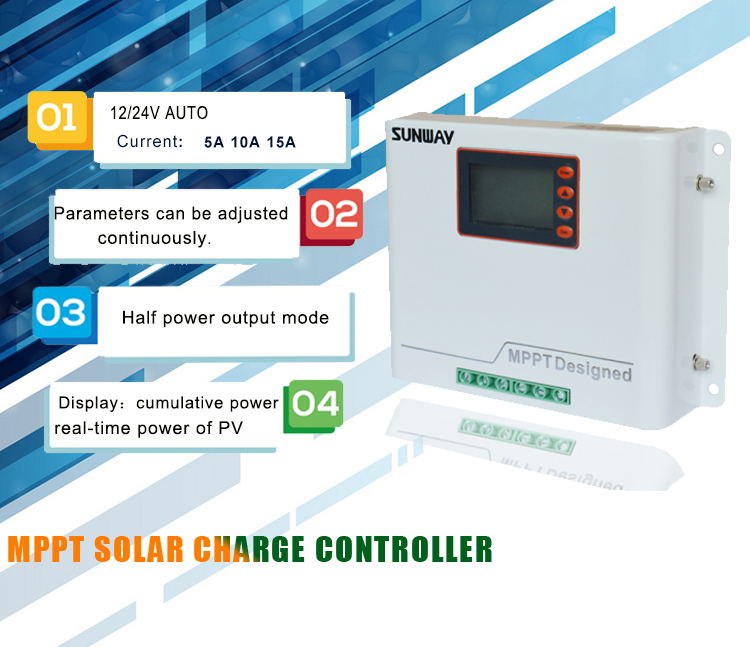

  • 12V/24V auto recognition.
  • Advanced maximum power point tracking technology to optimize using the solar system.
  • Peak conversion efficiency of 95%, high Tracking efficiency of 97%.
  • Very fast sweeping of the entire I-V curve several seconds tracking speed.
  • Widely used, automatic recognize day/night.
  • Timer function with 1-17 hours option for street light system.
  • Unique dual timer function, enhance the flexibility of street light system.
  • Sealed, Gel and Flooded battery be suitable.
  • Adopting temperature compensation and correcting the charging and discharging parameters automatically, improving the battery lifetime.

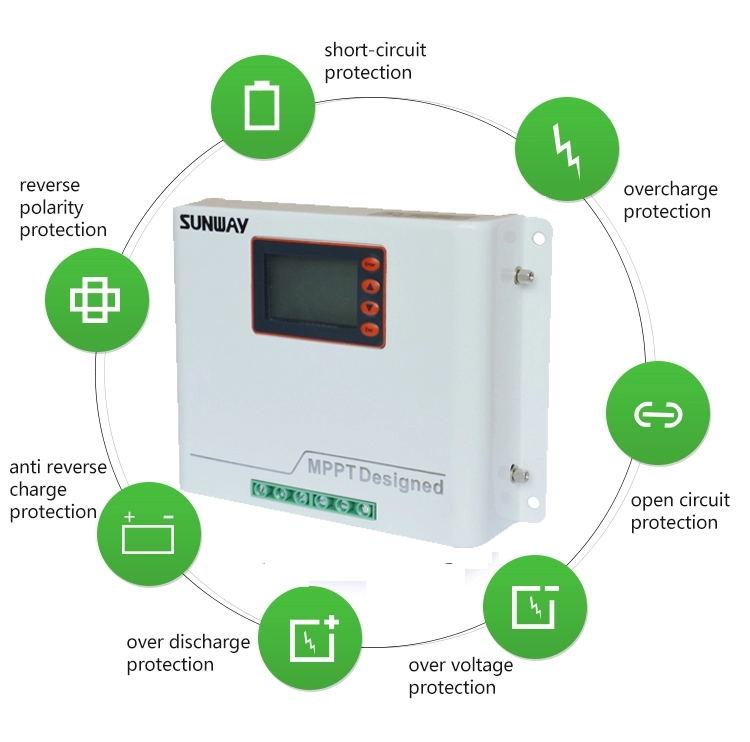

  • Electronic protection: over charging, over discharging ,overload short circuit.
  • Reverse protection: any combination of solar module and battery, without causing damage to any component.
  • Excellent thermal design and nature air cooling.
  • 3 years warranty and the whole life maintenance service

Part Of Tech-Parameters

  • Solar module configuration:
System Vmp Min. Vmp standard Vmp Max

Good Charging

efficiencyneed

higher than Vmp Min.

12V 15V 18V 25V
24V 30V 36V 45V
  • Controller performance
Max. Vol of solar panel 65V/150V
Max. Power from solar panel 240W(12V);480W(24V)
Controller operation 9V Min(12V); 18V Min(24V)
Charge current rated 5A/10A/15A/20A
Controller power ≤30mA
Charging efficiency 90%~95%, Peak on 97%
Current of output Max. 10A
Temperature compensation conefficient                  -35mV/°c(25°c ref.)
Ambient Temp. Range -35°c~+55°c
Store Temp. Range -35°c~+80°c
Humidity range 10%~90%(NC)
Protection class IP52
  • Battery Parameters:

System Over-discharging Over-discharging recovery Floating  Over-charge Over-charge recovery
12V 10.5V 12.0V 14V 13.5V 15.0V
24V 20V 24V 28.0V 27.0V 30.0V

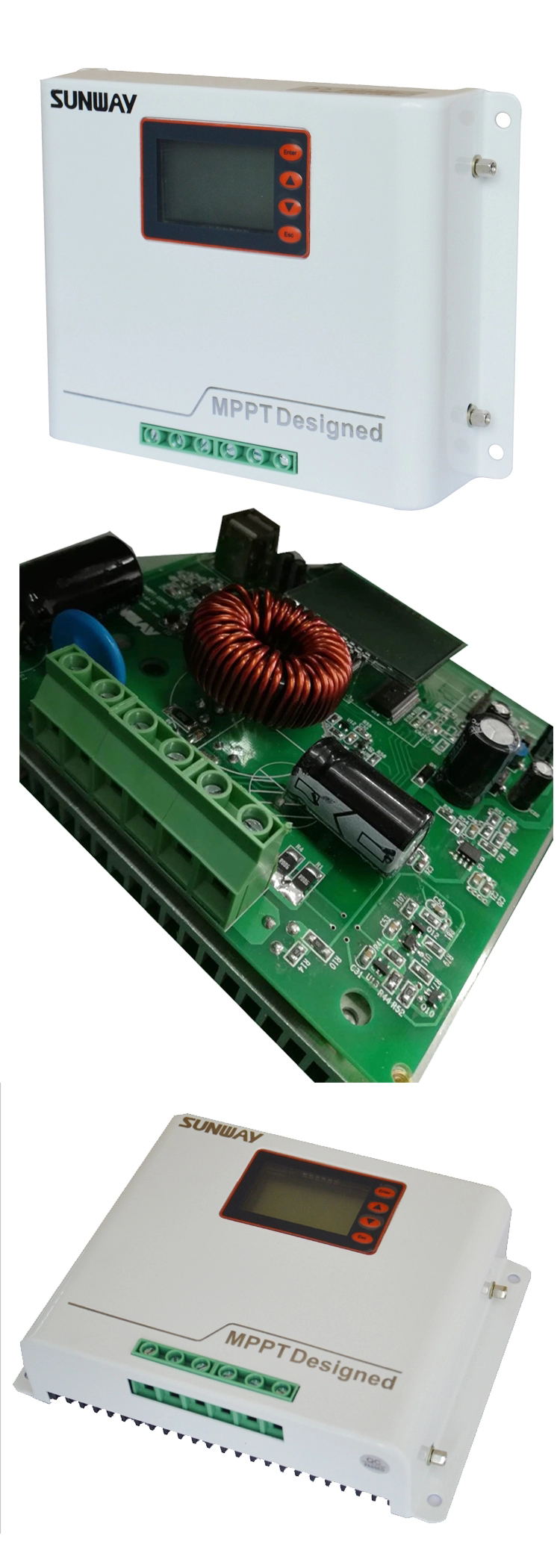

Assemly of MPPT solar charge controller




Project case of MPPT solar charge controller


Package and shippment of MPPT solar charge controller



Payment of MPPT solar charge controller


Payment Term



T/T
EXW

30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union

Amount lower than 5000usd
West Union
Delivery Time
7~10days after receiving payment for one container
