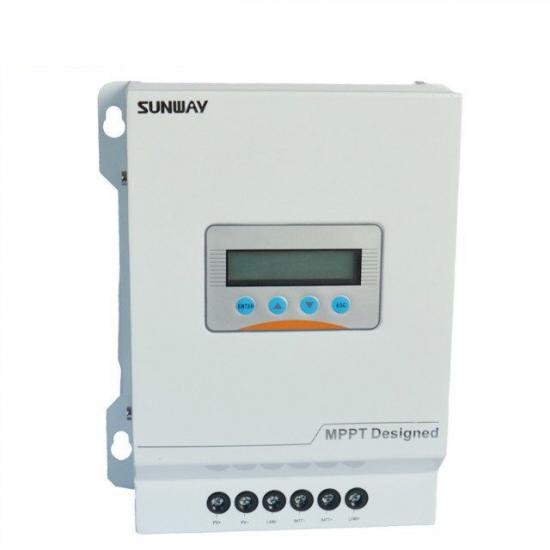

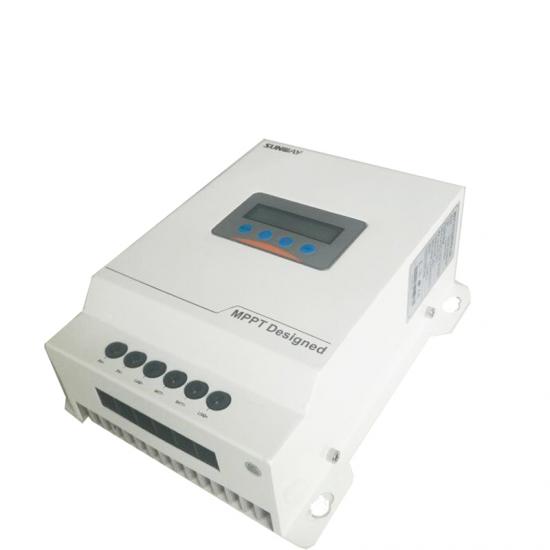

12v 24v 48V 30A 40A MPPT solar charge controller
Description of MPPT solar charge controller
Feature of MPPT solar charge controller:
1.) MPPT technology increases the efficiency of your PV system
2.) Modular Central Unit (MCU) control
3.) 12/24/36/48V selectable and auto recognition
4.) Be suitable for Lead-Acid, GEL,AGM and Li-Fe various kinds of batteries
5.) Users can to modify the system parameters by setting keys
6.) Standard RS485 data transfer function
7.) TTL Control Signal is offered, suitable for PV&Diesel generator hybrid system(optional)
8.) Temperature compensation function (optional)
9.) Utility power backup function (optional)
Technical Data of MPPT solar charge controller:
|
System Capability |
|
|
Model type |
SSCM- 12V / 24V / 36V / 48V |
|
Max. PV input power [W] |
900 / 1800 / 2250 / 3000 (12/24/36/48V system) |
|
Rated charging current [A] |
30 A / 40A / 45A |
|
Min. input voltage (Vmp) [V] |
15 / 28 / 43 / 58 (12/24/36/48V system) |
|
Max. input voltage (Vmp) [V] |
18 / 36 / 54 / 72 (12/24/36/48V system) |
|
Max. PV input voltage (Voc) [V] |
150 |
|
Float charge (be adjustable) [V] |
14 / 28 / 42 / 56 (12/24/36/48V system) |
|
Boost charge [V] |
10 / 20 / 30 / 40 (12/24/36/48V system) |
|
Deep discharge protection (be adjustable) [V] Load disconnect |
10.5 / 21 / 31.5 / 42 (12/24/36/48V system) |
|
Reconnect level (be adjustable) [V] With 10s delay |
12 / 24 / 36 / 48 (12/24/36/48V system) |
|
Over-voltage protection (be adjustable) [V] Cut-off charging 10s delay (be adjustable) |
15 / 30 / 45 / 60 (12/24/36/48V system) |
|
Reconnect charging [V] With 10minutes delay (be adjustable) |
13.5 / 27 / 40.5 / 54 (12/24/36/48V system) |
|
|
|
|
Performance |
|
|
Consumption at standby [mA] |
<30 |
|
Conversion Efficiency |
Up to 98% |
|
Peak of conversion efficiency |
99% |
|
Topology |
Inductor |
|
Ambient Temperature |
-40℃ to +50℃ (exceed 50℃ with derating) |
|
Ambient Humidity |
0%~98% Non-condensing |
|
Cooling Method |
Natural Convection |
|
Temperature compensation |
-4mV/K(2V cell) |
|
Altitude [m] |
<2000 (without power derating) |
|
|
|
|
General Data |
|
|
LCD Display |
LCD (16X2characters,green backlight) |
|
Display Language |
English |
|
Data communication (option) |
RS-485 |
|
Grounding |
Negative |
|
Ingress Protection Class |
IP65 |
|
Dimensions (W*D*H) [mm] |
290*200*90 |
|
Net weight [kg] |
4 |
