260W-285W 60 Cells Poly solar panel

60 cells poly panels. A grade cells, full power.

item no.:
SWP60-260
lead time:
17,12
product orgin:
China
shipping port:
china
payment:
T/T;LC
color:
Black

inquiry now

products details

260W-285W 60 CELLS Poly solar panel

2_01

Spcifications of 260W-285W 60 CELLS Poly solar panel

Electrical Characteristics
Module No.	UOM	SWP60-260	SWP60-270	SWP60-275	SWP60-280	SWP60-285
Rated Maxmum Power-Pmax	WP	260W	270W	275W	280W	285W
Maxmum Power Voltage-Vmp	V	30.51	30.88	31.02	31.05	31.08
Maxmum Power Current -Imp	A	8.52	8.74	8.86	9.02	9.17
Open Circuit Voltage-Voc	V	37.65	37.96	37.98	38.03	38.06
Short Circuit Current-lsc	A	9.09	9.4	9.53	9.69	9.85
Power Tolerance	%	+/-3
Module Efficiency	%	15.98	16.6	16.9	17.2	17.5
Current Temperature coefficient	%/k	0.06±0.01
Voltage Temperature Coefficient	mv/k	-(155±10)
Power Temperature Coefficient	%/k	-(0.5±0.05)
Nominal Operating Cell Temperature(NOCT)	℃	45±2℃
Standard Test Conditions STC:1000W/Wm2, spectrum AM1.5 and cell temperature 25ºC.
Mechanical & Packaging Characteristics
Type of Solar Cell		Poly Crystalline 156*156mm
Solar cell and Configuration		60cells(6*10)
Dimension of Module	mm	164099235
Weight	kg	17.5
Junction Box		IP67 Rated
Type of Glass and Thickness		Low-ron Tempered Glass
Frame		Clear anodized aluminium alloy, color: silver
packing Configuration and Quantity per Pallet		30 pcs per carton and one carton per pallet
Container Loading Capacity for 20GP		364
Container Loading Capacity for 40GP		840
Container Loading Capacity for 40HQ		910
Warranty: 15 years product warranty and 25 years performance warranty ensure reliability of modules.
Note: All specifications & characteristics we can provide depend the customer's requirement.

Dimensions of 260W-285W 60 CELLS Poly solar panel

Curve of 260W-285W 60 CELLS Poly solar panel

Details of 260W-285W 60 CELLS Poly solar panel

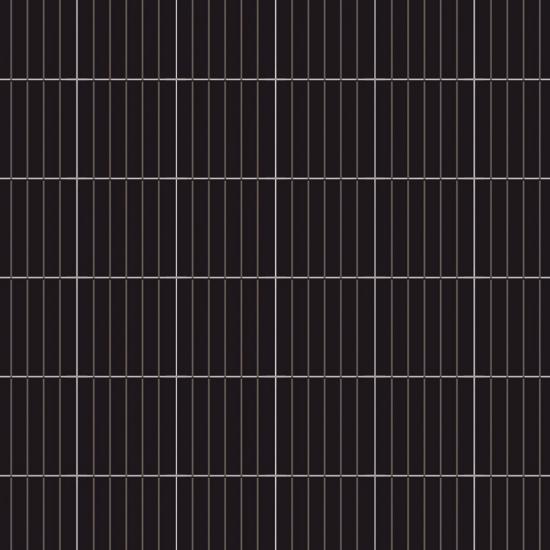

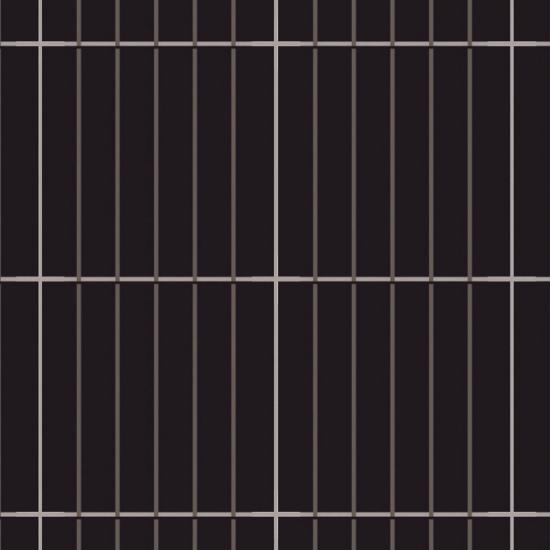

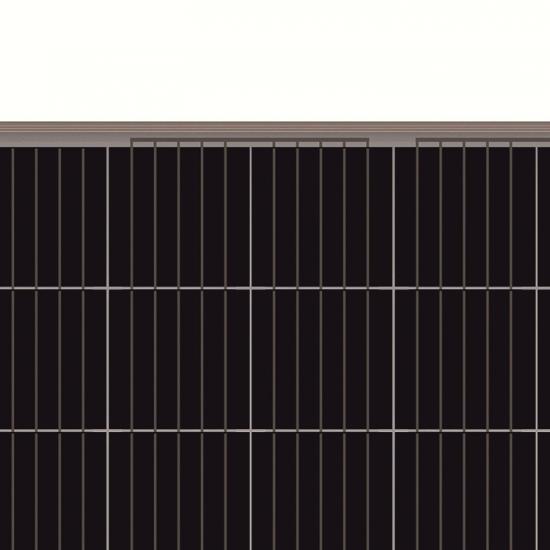

Solar panel details

Assemly of 260W-285W 60 CELLS Poly solar panel

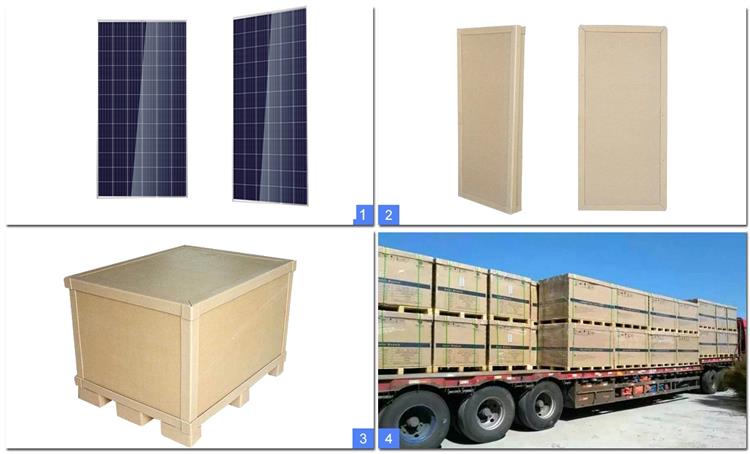

Package of 260W-285W 60 CELLS Poly solar panel

Payment of 260W-285W 60 CELLS Poly solar panel

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
		FOB
		CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
		CIF
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight
	West Union	Amount lower than 5000usd
	West Union
Delivery Time	7~10days after receiving payment for one container
