330W Mono solar panels for solar power system

System voltage Max 1000VDC 330W power rate Mono type,5BB

item no.:
SW60-330
lead time:
17,12
product orgin:
China
shipping port:
china
payment:
T/T;LC
color:
Black

inquiry now

products details

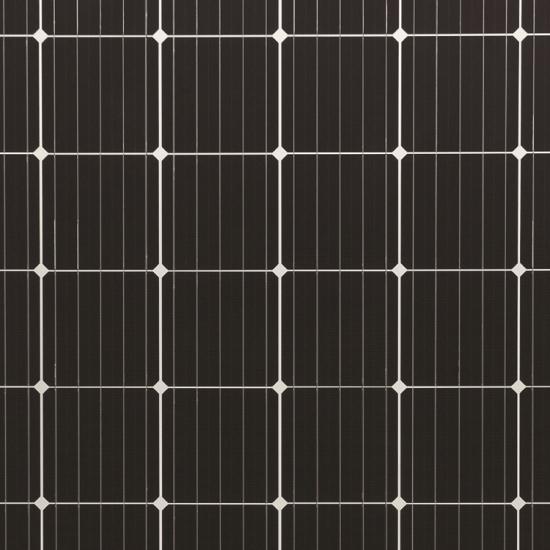

330W Mono solar panels

2_01

Spcifications of Mono solar panel from 320W-350W

Electrical Characteristics of Mono solar panels
Module No.	UOM	SWP72-320	SWP72-330	SWP72-340	SWP72-350
Rated Maxmum Power-Pmax	WP	320	330	340	350
Maxmum Power Voltage-Vmp	V	37.02	37.22	37.38	37.87
Maxmum Power Current -Imp	A	8.66	8.86	9.12	9.24
Open Circuit Voltage-Voc	V	45.82	46.16	46.36	46.96
Short Circuit Current-lsc	A	9.23	9.42	9.62	9.8
Power Tolerance	%	+/-3
Module Efficiency	%	16.68	17.2	17.72	18.2
Current Temperature coefficient	%/k	0.06±0.01
Voltage Temperature Coefficient	mv/k	-(155±10)
Power Temperature Coefficient	%/k	-(0.5±0.05)
Nominal Operating Cell Temperature(NOCT)	℃	45±2℃
Standard Test Conditions STC:1000W/Wm2, spectrum AM1.5 and cell temperature 25ºC.
Mechanical & Packaging Characteristics
Type of Solar Cell		Mono Crystalline 156*156mm
Solar cell and Configuration		72（8X9）
Dimension of Module	mm	1950X984X40
Weight	kg	22.5
Junction Box		IP67 Rated
Type of Glass and Thickness		Low-ron Tempered Glass
Frame		Clear anodized aluminium alloy, color: silver
packing Configuration and Quantity per Pallet		30 pcs per carton and one carton per pallet
Container Loading Capacity for 20GP		288
Container Loading Capacity for 40GP		576
Container Loading Capacity for 40HQ		648
Warranty: 15 years product warranty and 25 years performance warranty ensure reliability of modules.
Note: All specifications & characteristics we can provide depend the customer's requirement.

Dimensions of 72Cells solar panels

Curve of 72Cells solar panels

Details of Mono solar panels

Assemly of 72Cells solar panels

Package of Mono solar panels

Payment of Mono solar panels

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
		FOB
		CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
		CIF
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight
	West Union	Amount lower than 5000usd
	West Union
Delivery Time	7~10days after receiving payment for one container
