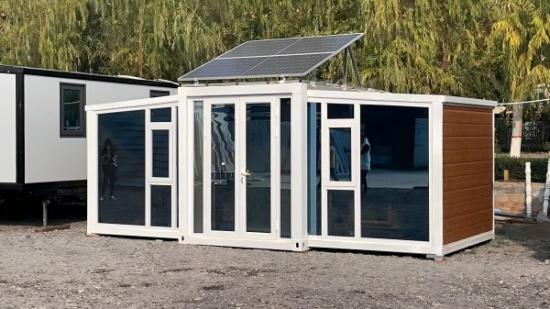

solar energy system for expandable plat pack prefab energy labor shopping container house
|
|
Extended size (mm) L * W *H
|
L5900*W6300*H2480
|
|
Interior space (mm) L * W *H
|
L5640*W6140*H2240
|
|
Folding size (mm) L * W *H
|
L5900*W2200*H2480
|
|
Weight (KG)
|
2500
|
|
|
Main beam
|
Galvanized Square Tube 80 * 100 * 2.5MM Q235
|
|
Column
|
Galvanized fold 150 * 210 * 2.0MM Q235
|
|
Sub-frame
|
Galvanized Square Tube 40 * 60 * 1.5MM Q235
|
|
Box lifting head
|
Galvanized 210*150*160*4MM Q235
|
|
Hinge
|
Galvanized Thickened Hinge Q235
|
|
|
Intermediate floor
|
18mm cement floor
|
|
Floor on both sides
|
18mm Bamboo Rubber Board
|
|
|
Sidewall
|
75mm sandwich sandwich board, color roll double-sided 0.35 (sandwich material is rockwool, EPS, optional)
Standard sandwich material is 12kg / m3EPS
|
|
Partition
|
50mm sandwich sandwich panel, colored steel plate substrate double-sided 0.35.
(sandwich material is rockwool, EPS, optional)
Standard sandwich material is 12kg / m3EPS
|
|
Main Top and Side Top
|
50mm sandwich sandwich panel, colored steel plate substrate double-sided 0.35.
(sandwich material is rockwool, EPS, optional)
Standard sandwich material is 12kg / m3EPS
|
|
|
Parameter
|
National standard wire; Inlet 6, air conditioner socket 4, ordinary socket 2.5, lighting 1.5.
(Can be customized to meet the certification requirements of the circuit according to
the country)
2, circuit breaker system; 2P63A total open 1, 2P43A/2P32A/1P20 shunt leakage
protector each.
3, lighting; Three anti-LED ceiling lamps * 6.
4, socket; Standard international three-hole socket (socket standard can be configured
according to customer requirements)
|
|
|
Entrance door
|
Standard steel anti-theft door (can be customized broken bridge aluminum, titanium
magnesium alloy, aluminum alloy door)
|
|
Window
|
Standard plastic steel double glass casement window (can be customized high-end
broken bridge aluminum window, aluminum alloy window) 930 * 930 * 6; 500 * 500 * 1
|
