 |Solar Prefabricated container Modular House Double Wing Foldable Mobile House

Foldable Mobile House
Foldable Mobile House Foldable Mobile House Foldable Mobile House

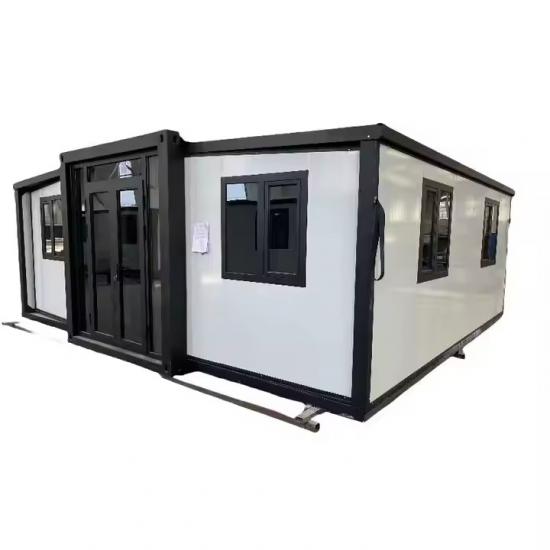

Solar Prefabricated container Modular House Double Wing Foldable Mobile House

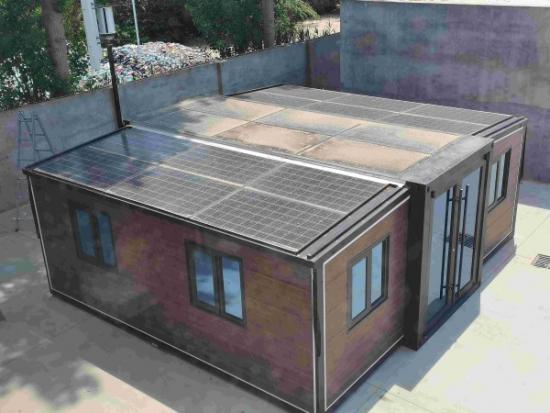

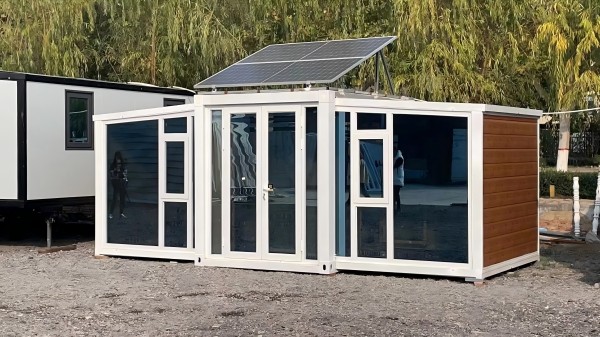

Solar power system for Prefabricated container Modular House Double Wing Foldable Mobile House
inquiry now
products details

solar energy system for expandable plat pack prefab energy labor shopping container house

Basic
information
Extended size (mm) L * W *H
L5900*W6300*H2480
Interior space (mm) L * W *H
L5640*W6140*H2240
Folding size (mm) L * W *H
L5900*W2200*H2480
Weight (KG)
2500
Frame
structure
Main beam
Galvanized Square Tube 80 * 100 * 2.5MM Q235
Column
Galvanized fold 150 * 210 * 2.0MM Q235
Sub-frame
Galvanized Square Tube 40 * 60 * 1.5MM Q235
Box lifting head
Galvanized 210*150*160*4MM Q235
Hinge
Galvanized Thickened Hinge Q235
Floor
Intermediate floor
18mm cement floor
Floor on both sides
18mm Bamboo Rubber Board
Insulation
wall
Sidewall
75mm sandwich sandwich board, color roll double-sided 0.35 (sandwich material is rockwool, EPS, optional)
Standard sandwich material is 12kg / m3EPS
Partition
50mm sandwich sandwich panel, colored steel plate substrate double-sided 0.35.
(sandwich material is rockwool, EPS, optional)
Standard sandwich material is 12kg / m3EPS
Main Top and Side Top
50mm sandwich sandwich panel, colored steel plate substrate double-sided 0.35.
(sandwich material is rockwool, EPS, optional)
Standard sandwich material is 12kg / m3EPS
Electrical
system
Parameter
National standard wire; Inlet 6, air conditioner socket 4, ordinary socket 2.5, lighting 1.5.
(Can be customized to meet the certification requirements of the circuit according to
the country)
2, circuit breaker system; 2P63A total open 1, 2P43A/2P32A/1P20 shunt leakage
protector each.
3, lighting; Three anti-LED ceiling lamps * 6.
4, socket; Standard international three-hole socket (socket standard can be configured
according to customer requirements)
Door and
window
system
Entrance door
Standard steel anti-theft door (can be customized broken bridge aluminum, titanium
magnesium alloy, aluminum alloy door)
Window
Standard plastic steel double glass casement window (can be customized high-end
broken bridge aluminum window, aluminum alloy window) 930 * 930 * 6; 500 * 500 * 1
